Stationary Inspection of Components in the field of eMobility – ISOTEST® act Industry Solution

Contrary to conventional cars, battery cells are used as energy source in electric vehicles. Due to the high storage requirement, a multitude of cells that are connected to electrical busbars is used. Different coating methods, such as those with epoxy, guarantee the enormous demands on the insulation class.


The most diverse coatings are material-friendly tested for pores, cracks and other damage with the stationary ISOTEST® act in-plant holiday detector system.
In combination with robotic systems and tailor-made accessories a fully automated testing can be done.


Renowned car manufacturer rely on the ISOTEST® act.

Our recommendation

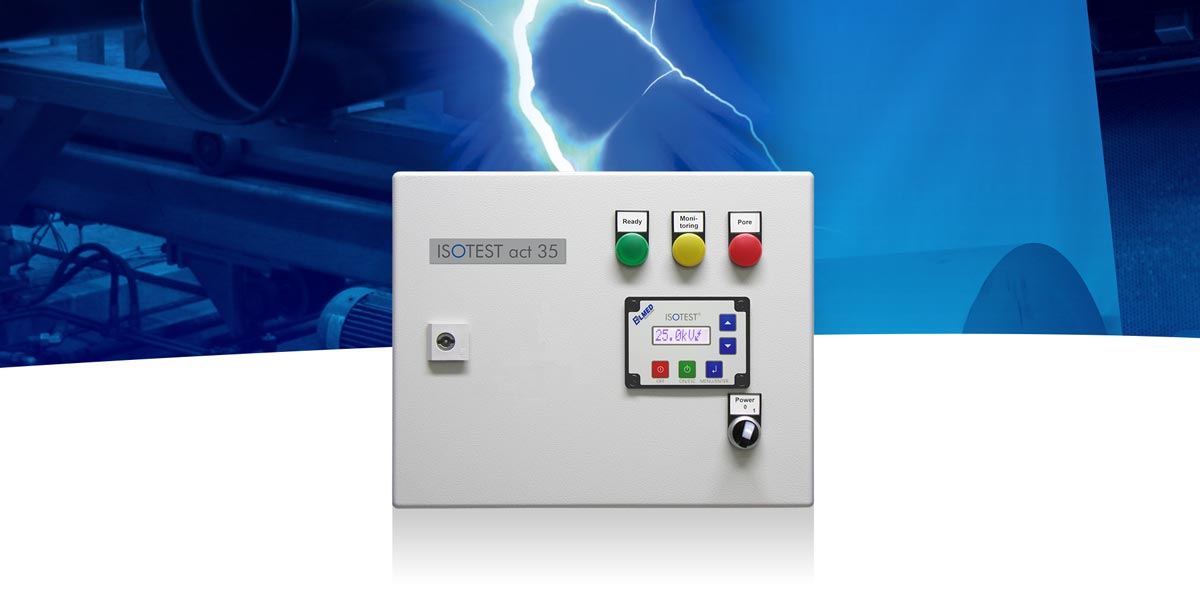

In-plant Holiday Detector ISOTEST® act 8.0 / 35

  • test voltage 0.5 - 8.0 kV, 0.5 kV steps (ISOTEST® act 8.0)
    or 7.5 - 35 kV, 2.5 kV steps (ISOTEST® act 35)
  • high-voltage pulse technology
  • no static charging
  • testing of dirty, damp and even slightly conductive surfaces
  • up to 6 test channels – synchronisation of several devices (master / slave mode)
  • “Phantom-Grounding” – no direct grounding necessary
  • external switch-on / switch-off of the test voltage
  • adjustable sensitivity and filter functions

more information

In-plant High Voltage Pulse Crest Meter ISOTEST® HV conti

Permanent and external revision of high voltage testing with ISOTEST® act in-plant holiday detector systems.


  • testing of in-plant and stationary holiday detector systems ISOTEST® act according to general rules and standards
  • suitable for continuous operation (three shifts)
  • interfaces for the external documentation of test voltages and operating states
  • highest interference resistance in the measurement analysis thanks to state-of-the-art optical fibre technology

more information
